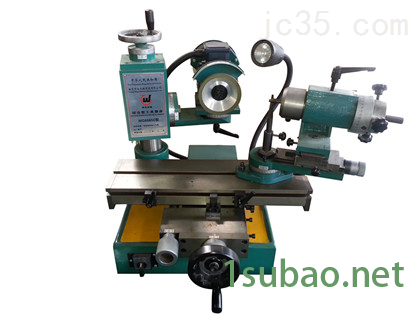

槍鉆研磨機

 技術參數

  可磨削工作zui大直徑                              280mm

  工作臺縱向行程                                  285mm

  工作臺橫向行程                                  160mm

  砂輪垂直升降距離                                130mm

  磨頭轉速                                       2800rpm

  磨頭電機功率                     380V   50Hz   0.55Kw

  工作燈                                             24V

  砂輪尺寸             ￠125X32X32X10XR2碗型金剛石砂輪

                              ￠150X32X50碗型白剛玉砂輪

                               ￠150X32X25平型白剛王砂輪

  磨削槍鉆范圍                                ￠6~￠48mm

  凈重                                              220Kg

  包裝尺寸                        長630x寬680x高870（mm）
